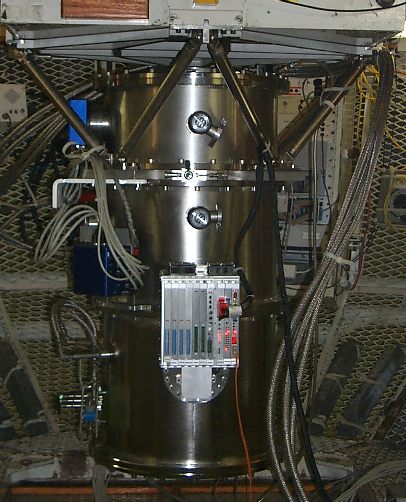

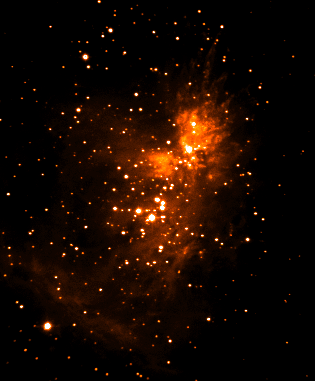

IRIS2 The AAO Infrared Imager & Spectrograph The images above show the Orion Nebula as imaged by IRIS2 in the H2 v=1-0 molecular line during commissioning in October 2001, and IRIS2 itself mounted at the Cassegrain focus of the 3.92-m Anglo-Australian Telescope.

The IRIS2 infrared imager and spectrograph was built in-house by the AAO, and commissioned between October 2001 and July 2002. It provides the AAO with an infrared facility for

• Wide field imaging (~8'x8')
• Moderate resolution (R=2400) long-slit spectroscopy, and
• Moderate resolution (R=2400)  multi-object spectroscopy


At its heart is a 1024x1024 Rockwell HAWAII-1 HgCdTe infrared detector, illuminated by a f/8 to f/2.2 focal reducer. Spectroscopy is achieved by the implementation of a slit wheel allowing the insertion of a 1" wide slit (or multi-slit masks), and a wheel in the collimated beam containing grisms. These grisms use ~50mm 45-degree prisms of sapphire to deviate the beam and feed replica transmission gratings applied to their surfaces.

The spatial scale of IRIS2 is 0.4486"/pixel, giving a field of view of 7.7' x 7.7. The 1" slit for spectroscopy corresponds to limiting spectroscopic resolution of 2.2 pixels on the detector. At this resolution the dispersion of the sapphire grisms provide R~2400.

If you have any queries about the status or use of IRIS2, please do not hesitate to contact either Chris Tinney, or Stuart Ryder.

---


These pages are under development. Please bear with us as we try to download as much of our experience with this new instrument into these pages, as possible.


---
