FMOS specifications

Wavelength 0.9～1.8μm
Field of view 30'φ
Fiber diameter 1.2"φ
400 multiplicity
OH-airglow suppression
Spectral resolution
　High disp. mode:2200
　Low disp. mode : 500
Limiting magnitude
　(1h integration, S/N=5)
　J-band 22.3mag
　H-band 20.9mag

IRS optical layout

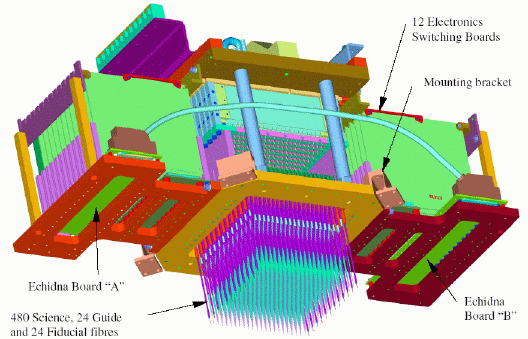

Echidna

IRS optical layout (animation, Zemax file, CAD file)

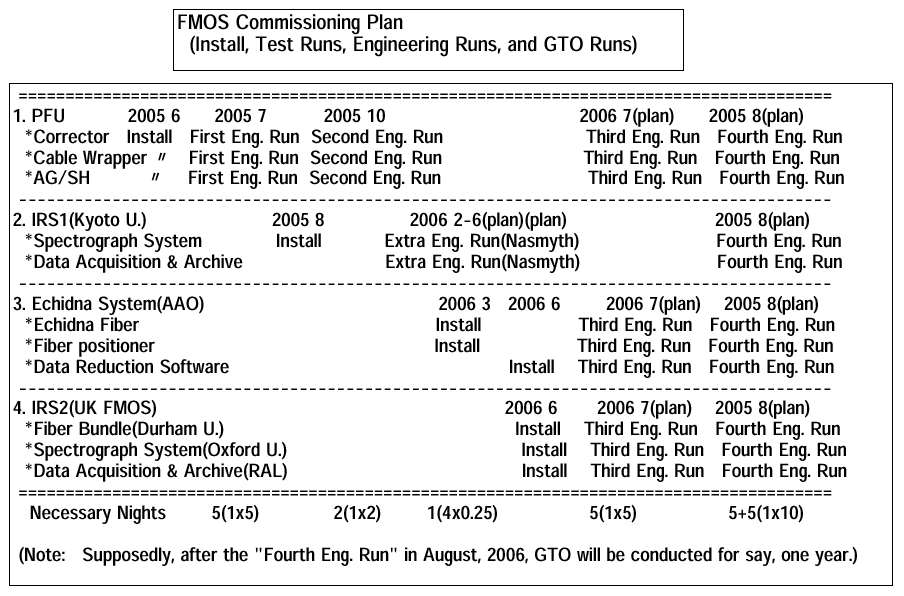

PFU and IRS have been transported from Kyoto to Mauna Kea.
The broken cable wrapper of PFU will be replaced next spring.
The optical adjustment of IRS in the ambient temperature
has almost finished, and the cooling test is scheduleded now.

PFU
PFU

PFU
PFU Cable wrapper

Out-focus image
On-focus image

IRS Refrigerator
IRS Compressor

IRS Camera dewar
IRS Camera dewar

IRS Camera dewar
Detector Mount

Flush light spectra
IR laser spectra

Mosaic gratings (front)
Mosaic gratings (back)

Before gratings adjustment
After gratings adjustment

Fiber slit and Mask mirror

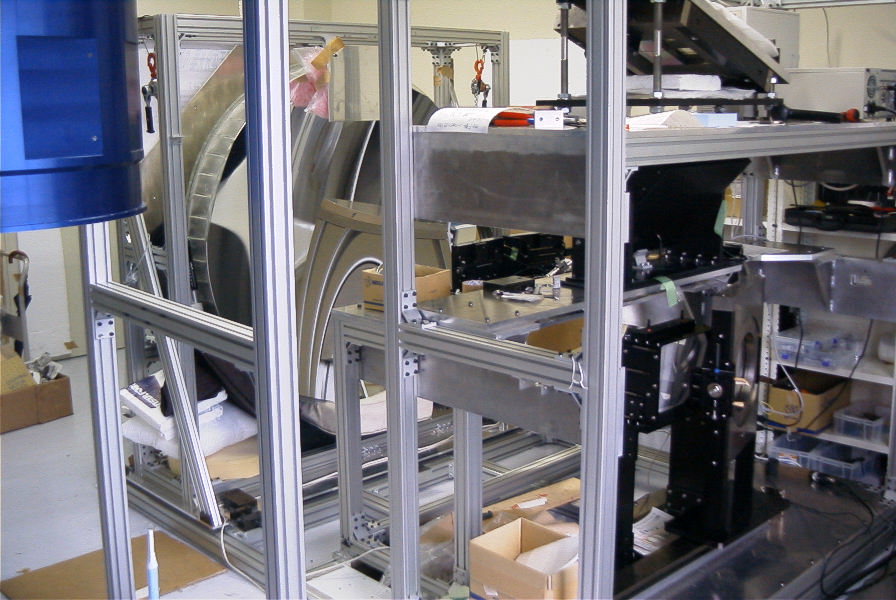

Optics in IRS

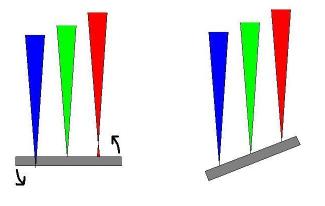

Detector tilt adjustment

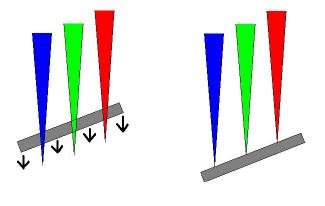

Detector focus adjustment

Before tilt adjustment
After tilt adjustment

Before focus adjustment
After focus adjustment

Dewar temp log
Refrigerator temp log

Science chip
The FMOS control system consists of five PCs.
Socket / RPC communication is adopted.
Connumication between Kyoto and AAO/UK/MELCO/FUJITSU
system makes the source complicated.

FMOS hardware location

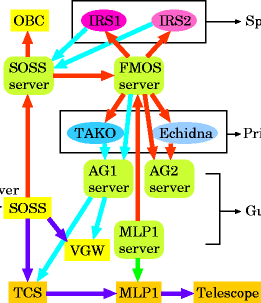

FMOS software network

　

IRS optical layout	Echidna
	FMOS specifications Wavelength 0.9～1.8μm Field of view 30'φ Fiber diameter 1.2"φ 400 multiplicity OH-airglow suppression Spectral resolution 　High disp. mode:2200 　Low disp. mode : 500 Limiting magnitude 　(1h integration, S/N=5) 　J-band 22.3mag 　H-band 20.9mag
IRS optical layout (animation, Zemax file, CAD file)
PFU and IRS have been transported from Kyoto to Mauna Kea. The broken cable wrapper of PFU will be replaced next spring. The optical adjustment of IRS in the ambient temperature has almost finished, and the cooling test is scheduleded now.
PFU	PFU
PFU	PFU Cable wrapper
Out-focus image	On-focus image
IRS Refrigerator	IRS Compressor
IRS Camera dewar	IRS Camera dewar
IRS Camera dewar	Detector Mount
Flush light spectra	IR laser spectra
Mosaic gratings (front)	Mosaic gratings (back)
Before gratings adjustment	After gratings adjustment
Fiber slit and Mask mirror	Optics in IRS
Detector tilt adjustment	Detector focus adjustment
Before tilt adjustment	After tilt adjustment
Before focus adjustment	After focus adjustment
Dewar temp log	Refrigerator temp log
Science chip

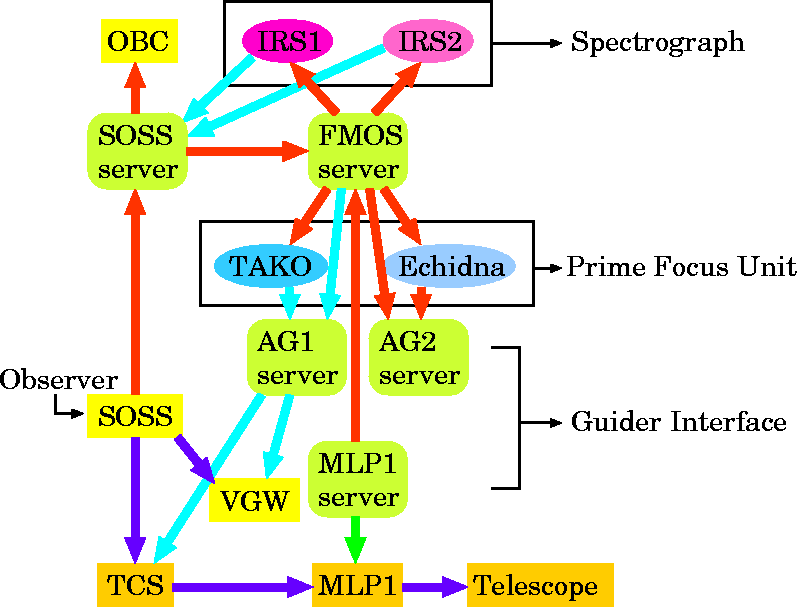

The FMOS control system consists of five PCs. Socket / RPC communication is adopted. Connumication between Kyoto and AAO/UK/MELCO/FUJITSU system makes the source complicated.
FMOS hardware location	FMOS software network
